Default Driveshaft u joint angles

[IMG][/IMG]

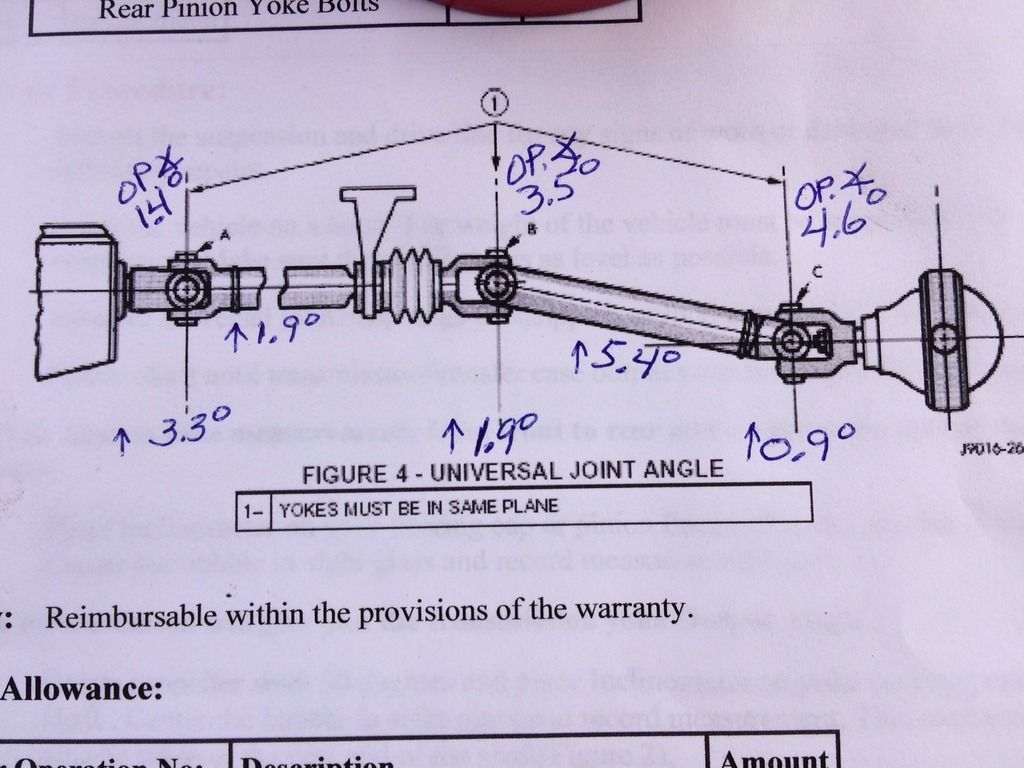

After measuring all this I'm wondering how much to shim the mount for the carrier bearing. Or maybe the wrong bearing keeps getting sold to me?
I'm thinking 7/16".
What is the consensus? I'm very curious about it because I've been trying to run down vibrations for awhile.
I don't imagine those angles on mine are good.
__________________
'01, 3500, DRW, 4x4, QC, leather, 345,000mi, BHAF ,3.54, Dana80/60, 47RE auto, MWFI VP44 at 112k, FASS Titanium 150, Banks Power Elbow,
4"Monster exhaust, Ranch Hand Legend frt bumper, silencer ring MIA,Cooper AT3s, Timbo's APPS, Spohn Trackbar upgrade, HellBent Steel DSS, 50hp Maxtorq Injectors.
Mopar 52122362AH Steering upgrade
30' Damon Escaper 5'er 12,000#
Reply With Quote
  #2
Old 09-12-2017
jetfueljockey's Avatar
jetfueljockey jetfueljockey is offline
Senior Member

Join Date: Nov 2006
Location: Isham, TN
Posts: 2,837
Default

I've always been told by drive shaft people that the joints had to break (be aligned) at the same time as a misaligned centerlines on the U-joint itself can cause a vibration too. Trail and error approach may be the route, 7/16 seems like a lot.......I'm not sure.
__________________
'06 2500 Brilliant Black Pearl Thunder Road, QC, 4X4, G56 w/ SBDD, Home Brew in the gearboxes Volant CAI, ATS Arc Flow , Airdog 100, AFE 4" cat back, Smarty JR, Warn lock-outs, drilled and slotted rotors, HBS steering stabilizer, Pacbrake airbags, Bilstiens, RP 15W40 , 2 BIG BALLS (shift knobs) from Geno's, 5th wheel slider, step bars. The next mod is........

'74 Trans Am, someday car.......
'10 Wildwood 356 SRV
'15 Mid-life crisis
'98 Oytota Navalon
Reply With Quote
  #3
Old 09-13-2017
BLRMKR27's Avatar
BLRMKR27 BLRMKR27 is offline
Senior Member

Join Date: Nov 2006
Location: Blackwell,MO
Posts: 638
Default

Pinion angle is WAY off! Evidently after an accident a few years ago when they had to replace the rear axle assy they put a 2wd rearend in it. Straight as an arrow between pinion and transfer case, but working angles of ujoints are off. I have my brother (aerospace machinist) making me some spring blocks to raise the pinion angle and lower my truck 1/2 inch in rear. Right now the rearmost ujoint binds up every half turn of the driveshaft. kepps wasting rear ujoints and fells like wheel hop sometimes. Hardest vehicle to trace down vibrations I've ever dealt with, what with all the rattling and vibes under the hood. I am determined to get this crap straightened out. Will keep updating.
__________________
'01, 3500, DRW, 4x4, QC, leather, 345,000mi, BHAF ,3.54, Dana80/60, 47RE auto, MWFI VP44 at 112k, FASS Titanium 150, Banks Power Elbow,
4"Monster exhaust, Ranch Hand Legend frt bumper, silencer ring MIA,Cooper AT3s, Timbo's APPS, Spohn Trackbar upgrade, HellBent Steel DSS, 50hp Maxtorq Injectors.
Mopar 52122362AH Steering upgrade
30' Damon Escaper 5'er 12,000#
Reply With Quote
  #4
Old 09-13-2017
BLRMKR27's Avatar
BLRMKR27 BLRMKR27 is offline
Senior Member

Join Date: Nov 2006
Location: Blackwell,MO
Posts: 638
Default

Trying to figure why the transfer case ujoint flange is clocked 90* from the pinion flange. Cant change that as it's keyed in that position.
